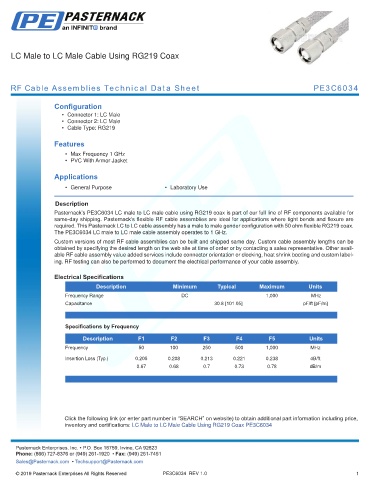

LC Male to LC Male Cable Using RG219 Coax

RF Cable Assemblies Technical Data Sheet PE3C6034

Configuration
• Connector 1: LC Male
• Connector 2: LC Male
• Cable Type: RG219

Features
• Max Frequency 1 GHz
• PVC With Armor Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C6034 LC male to LC male cable using RG219 coax is part of our full line of RF components available for
same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure are
required. This Pasternack LC to LC cable assembly has a male to male gender configuration with 50 ohm flexible RG219 coax.
The PE3C6034 LC male to LC male cable assembly operates to 1 GHz.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Capacitance 30.8 [101.05] pF/ft [pF/m]
.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
Insertion Loss (Typ.) 0.205 0.208 0.213 0.221 0.238 dB/ft
0.67 0.68 0.7 0.73 0.78 dB/m

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: LC Male to LC Male Cable Using RG219 Coax PE3C6034
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C6034 REV 1.0 1
