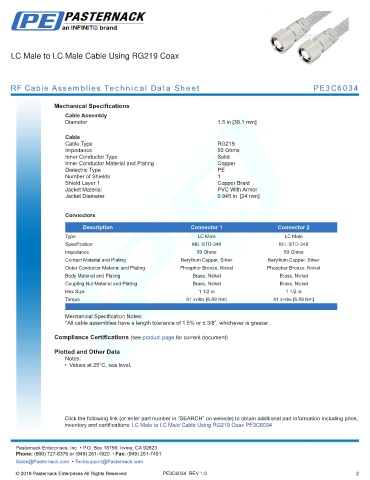

LC Male to LC Male Cable Using RG219 Coax

RF Cable Assemblies Technical Data Sheet PE3C6034

Mechanical Specifications
Cable Assembly
Diameter 1.5 in [38.1 mm]
.
Cable
Cable Type RG219
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper
Dielectric Type PE
Number of Shields 1
Shield Layer 1 Copper Braid
Jacket Material PVC With Armor
Jacket Diameter 0.945 in [24 mm]
.

Connectors
Description Connector 1 Connector 2
Type LC Male LC Male
Specification MIL-STD-348 MIL-STD-348
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Silver Beryllium Copper, Silver
Outer Conductor Material and Plating Phosphor Bronze, Nickel Phosphor Bronze, Nickel
Body Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Hex Size 1 1/2 in 1 1/2 in
Torque 61 in-lbs [6.89 Nm] 61 in-lbs [6.89 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: LC Male to LC Male Cable Using RG219 Coax PE3C6034
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C6034 REV 1.0 2
