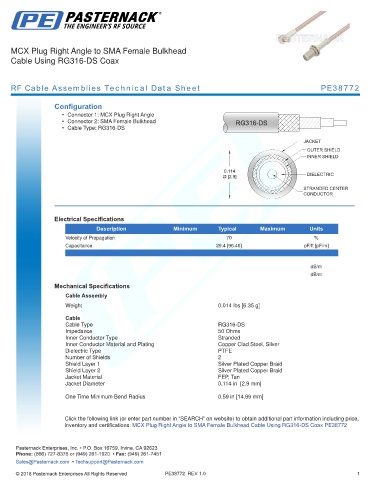

MCX Plug Right Angle to SMA Female Bulkhead
Cable Using RG316-DS Coax

RF Cable Assemblies Technical Data Sheet PE38772

Configuration
• Connector 1: MCX Plug Right Angle
• Connector 2: SMA Female Bulkhead
• Cable Type: RG316-DS

.
Electrical Specifications
Description Minimum Typical Maximum Units
Velocity of Propagation 70 %
Capacitance 29.4 [96.46] pF/ft [pF/m]
.
dB/m
dB/m
Mechanical Specifications
Cable Assembly
.
Weight 0.014 lbs [6.35 g]

Cable
Cable Type RG316-DS
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.114 in [2.9 mm]
.
One Time Minimum Bend Radius 0.59 in [14.99 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Right Angle to SMA Female Bulkhead Cable Using RG316-DS Coax PE38772
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE38772 REV 1.0 1
