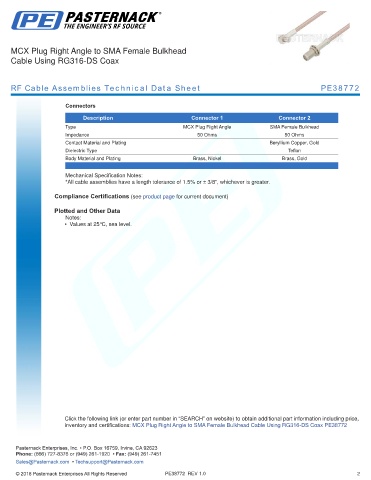

MCX Plug Right Angle to SMA Female Bulkhead
Cable Using RG316-DS Coax

RF Cable Assemblies Technical Data Sheet PE38772

Connectors

Description Connector 1 Connector 2
Type MCX Plug Right Angle SMA Female Bulkhead
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold
Dielectric Type Teflon
Body Material and Plating Brass, Nickel Brass, Gold
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Right Angle to SMA Female Bulkhead Cable Using RG316-DS Coax PE38772
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE38772 REV 1.0 2
