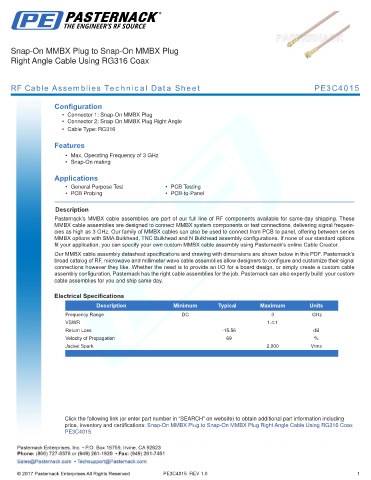

Snap-On MMBX Plug to Snap-On MMBX Plug
Right Angle Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C4015

Configuration
• Connector 1: Snap-On MMBX Plug
• Connector 2: Snap-On MMBX Plug Right Angle
• Cable Type: RG316

Features
• Max. Operating Frequency of 3 GHz
• Snap-On mating

Applications
• General Purpose Test • PCB Testing
• PCB Probing • PCB-to-Panel
.
Description
Pasternack’s MMBX cable assemblies are part of our full line of RF components available for same-day shipping. These
MMBX cable assemblies are designed to connect MMBX system components or test connections, delivering signal frequen-
cies as high as 3 GHz. Our family of MMBX cables can also be used to connect from PCB to panel, offering between series
MMBX options with SMA Bulkhead, TNC Bulkhead and N Bulkhead assembly configurations. If none of our standard options
fit your application, you can specify your own custom MMBX cable assembly using Pasternack’s online Cable Creator.
Our MMBX cable assembly datasheet specifications and drawing with dimensions are shown below in this PDF. Pasternack’s
broad catalog of RF, microwave and millimeter wave cable assemblies allow designers to configure and customize their signal
connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom cable
assembly configuration, Pasternack has the right cable assemblies for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.4:1
Return Loss -15.56 dB
Velocity of Propagation 69 %
Jacket Spark 2,000 Vrms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: Snap-On MMBX Plug to Snap-On MMBX Plug Right Angle Cable Using RG316 Coax
PE3C4015

PE3C4015 REV 1.0 1
