Snap-On MMBX Plug to Snap-On MMBX Plug
Right Angle Cable Using RG316 Coax

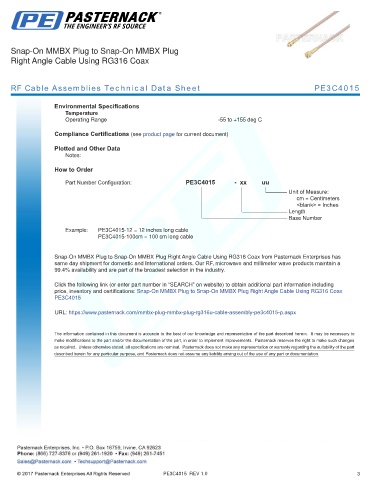

RF Cable Assemblies Technical Data Sheet PE3C4015

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

How to Order

Part Number Configuration: PE3C4015 - xx uu
| | | | | Unit of Measure:
cm = Centimeters
|
| <blank> = Inches
| | Length
Base Number

Example: PE3C4015-12 = 12 inches long cable
PE3C4015-100cm = 100 cm long cable

Snap-On MMBX Plug to Snap-On MMBX Plug Right Angle Cable Using RG316 Coax from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: Snap-On MMBX Plug to Snap-On MMBX Plug Right Angle Cable Using RG316 Coax
PE3C4015

URL: https://www.pasternack.com/mmbx-plug-mmbx-plug-rg316u-cable-assembly-pe3c4015-p.aspx

PE3C4015 REV 1.0 3
