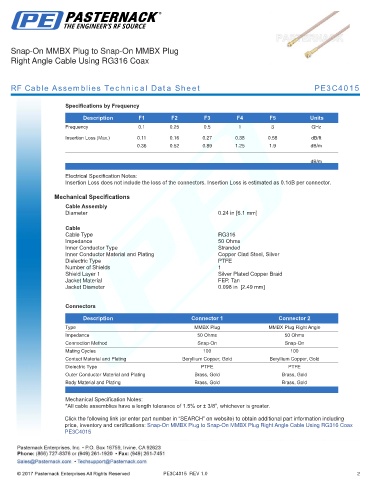

Snap-On MMBX Plug to Snap-On MMBX Plug
Right Angle Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C4015

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 3 GHz
Insertion Loss (Max.) 0.11 0.16 0.27 0.38 0.58 dB/ft
0.36 0.52 0.89 1.25 1.9 dB/m

dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.24 in [6.1 mm]
.
Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.098 in [2.49 mm]
.
Connectors

Description Connector 1 Connector 2
Type MMBX Plug MMBX Plug Right Angle
Impedance 50 Ohms 50 Ohms
Connection Method Snap-On Snap-On
Mating Cycles 100 100
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Brass, Gold Brass, Gold
Body Material and Plating Brass, Gold Brass, Gold
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: Snap-On MMBX Plug to Snap-On MMBX Plug Right Angle Cable Using RG316 Coax
PE3C4015

PE3C4015 REV 1.0 2
