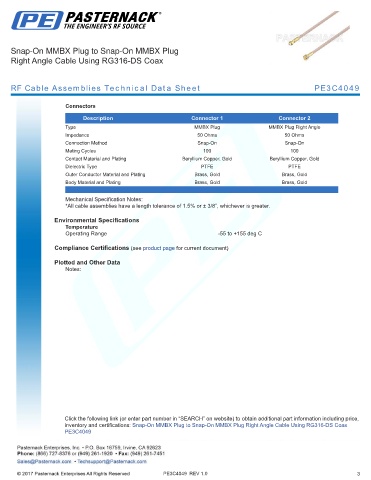

Snap-On MMBX Plug to Snap-On MMBX Plug
Right Angle Cable Using RG316-DS Coax

RF Cable Assemblies Technical Data Sheet PE3C4049

Connectors

Description Connector 1 Connector 2
Type MMBX Plug MMBX Plug Right Angle
Impedance 50 Ohms 50 Ohms
Connection Method Snap-On Snap-On
Mating Cycles 100 100
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Brass, Gold Brass, Gold
Body Material and Plating Brass, Gold Brass, Gold
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On MMBX Plug to Snap-On MMBX Plug Right Angle Cable Using RG316-DS Coax
PE3C4049

PE3C4049 REV 1.0 3
