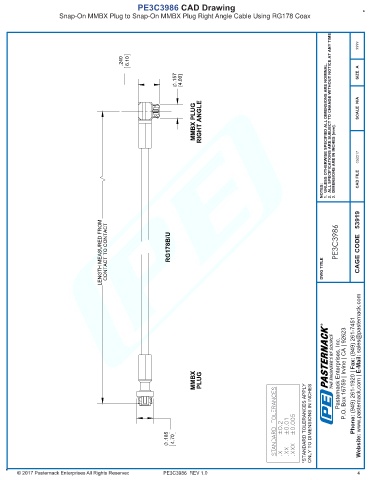

PE3C3986 CAD Drawing
Snap-On MMBX Plug to Snap-On MMBX Plug Right Angle Cable Using RG178 Coax
9999
.240 6.10
SIZE A
.157 [4.00]
MMBX PLUG RIGHT ANGLE 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 052217
NOTES: CAD FILE
LENGTH MEASURED FROM CONTACT TO CONTACT RG178B/U DWG TITLE PE3C3986 CAGE CODE 53919
R
THE ENGINEER'S RF SOURCE
MMBX PLUG Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
.185 4.70 .X ±0.2 .XX ±0.01 .XXX ±0.005
PE3C3986 REV 1.0 4
