SMA Male Right Angle to SMA Male Cable Using PE-P142LL Coax

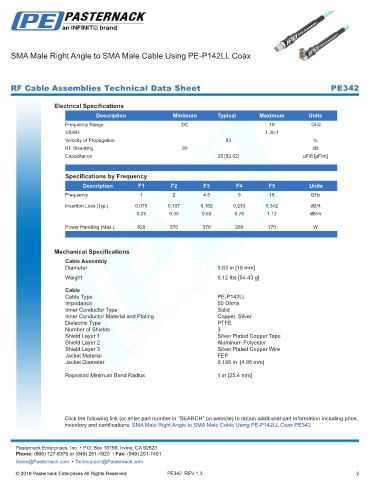

RF Cable Assemblies Technical Data Sheet PE342

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.35:1
Velocity of Propagation 83 %
RF Shielding 95 dB
Capacitance 25 [82.02] pF/ft [pF/m]
.
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 1 2 4.5 9 18 GHz
Insertion Loss (Typ.) 0.075 0.107 0.162 0.233 0.342 dB/ft
0.25 0.35 0.53 0.76 1.12 dB/m

Power Handling (Max.) 820 570 370 260 170 W
.

Mechanical Specifications
Cable Assembly
Diameter 0.63 in [16 mm]
.
Weight 0.12 lbs [54.43 g]
Cable
Cable Type PE-P142LL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 3
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Aluminum Polyester
Shield Layer 3 Silver Plated Copper Wire
Jacket Material FEP
Jacket Diameter 0.195 in [4.95 mm]
.
Repeated Minimum Bend Radius 1 in [25.4 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Cable Using PE-P142LL Coax PE342
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
