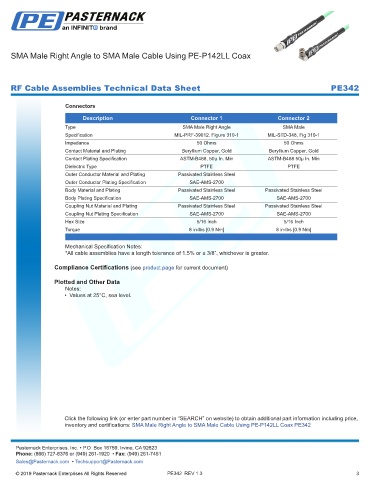

SMA Male Right Angle to SMA Male Cable Using PE-P142LL Coax

RF Cable Assemblies Technical Data Sheet PE342

Connectors

Description Connector 1 Connector 2
Type SMA Male Right Angle SMA Male
Specification MIL-PRF-39012. Figure 310-1 MIL-STD-348, Fig 310-1
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification ASTM-B488, 50µ In. Min ASTM-B488 50µ In. Min
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Passivated Stainless Steel
Outer Conductor Plating Specification SAE-AMS-2700
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Body Plating Specification SAE-AMS-2700 SAE-AMS-2700
Coupling Nut Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Plating Specification SAE-AMS-2700 SAE-AMS-2700
Hex Size 5/16 Inch 5/16 Inch
Torque 8 in-lbs [0.9 Nm] 8 in-lbs [0.9 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Cable Using PE-P142LL Coax PE342
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE342 REV 1.3 3
