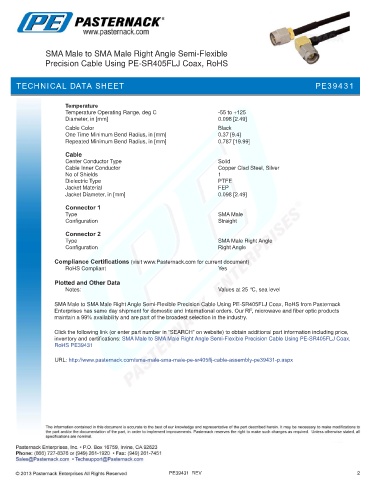

SMA Male to SMA Male Right Angle Semi-Flexible
Precision Cable Using PE-SR405FLJ Coax, RoHS

TECHNICAL D PE39431
TECHNICAL DATA SHEETATA SHEET

Temperature
Temperature Operating Range, deg C -55 to +125
Diameter, in [mm] 0.098 [2.49]
.
Cable Color Black
One Time Minimum Bend Radius, in [mm] 0.37 [9.4]
Repeated Minimum Bend Radius, in [mm] 0.787 [19.99]

Cable
Center Conductor Type Solid
Cable Inner Conductor Copper Clad Steel, Silver
No of Shields 1
Dielectric Type PTFE
Jacket Material FEP
Jacket Diameter, in [mm] 0.098 [2.49]

Connector 1
Type SMA Male
Configuration Straight
Connector 2
Type SMA Male Right Angle
Configuration Right Angle

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

SMA Male to SMA Male Right Angle Semi-Flexible Precision Cable Using PE-SR405FLJ Coax, RoHS from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male Right Angle Semi-Flexible Precision Cable Using PE-SR405FLJ Coax,
RoHS PE39431

URL: http://www.pasternack.com/sma-male-sma-male-pe-sr405flj-cable-assembly-pe39431-p.aspx

PE39431 REV 2
