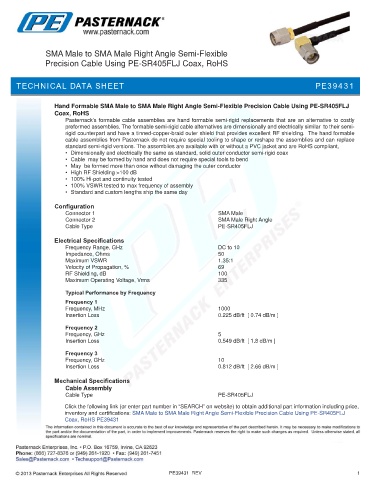

SMA Male to SMA Male Right Angle Semi-Flexible
Precision Cable Using PE-SR405FLJ Coax, RoHS

TECHNICAL D PE39431
TECHNICAL DATA SHEETATA SHEET

Hand Formable SMA Male to SMA Male Right Angle Semi-Flexible Precision Cable Using PE-SR405FLJ
Coax, RoHS
Pasternack’s formable cable assemblies are hand formable semi-rigid replacements that are an alternative to costly
preformed assemblies. The formable semi-rigid cable alternatives are dimensionally and electrically similar to their semi-
rigid counterpart and have a tinned-copper-braid outer shield that provides excellent RF shielding. The hand formable
cable assemblies from Pasternack do not require special tooling to shape or reshape the assemblies and can replace
standard semi-rigid versions. The assemblies are available with or without a PVC jacket and are RoHS compliant,
• Dimensionally and electrically the same as standard, solid outer conductor semi-rigid coax
• Cable may be formed by hand and does not require special tools to bend
• May be formed more than once without damaging the outer conductor
• High RF Shielding >100 dB
• 100% Hi-pot and continuity tested
• 100% VSWR tested to max frequency of assembly
• Standard and custom lengths ship the same day

Configuration
Connector 1 SMA Male
Connector 2 SMA Male Right Angle
Cable Type PE-SR405FLJ

Electrical Specifications
Frequency Range, GHz DC to 10
Impedance, Ohms 50
Maximum VSWR 1.35:1
Velocity of Propagation, % 69
RF Shielding, dB 100
Maximum Operating Voltage, Vrms 335

Typical Performance by Frequency
Frequency 1
Frequency, MHz 1000
Insertion Loss 0.225 dB/ft [ 0.74 dB/m ]

Frequency 2
Frequency, GHz 5
Insertion Loss 0.549 dB/ft [ 1.8 dB/m ]
Frequency 3
Frequency, GHz 10
Insertion Loss 0.812 dB/ft [ 2.66 dB/m ]

Mechanical Specifications
Cable Assembly
Cable Type PE-SR405FLJ
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male Right Angle Semi-Flexible Precision Cable Using PE-SR405FLJ
Coax, RoHS PE39431

PE39431 REV 1
