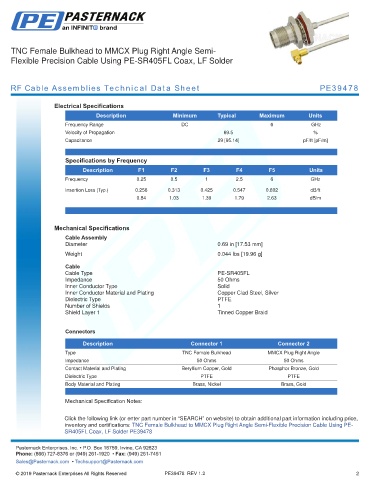

TNC Female Bulkhead to MMCX Plug Right Angle Semi-
Flexible Precision Cable Using PE-SR405FL Coax, LF Solder

RF Cable Assemblies Technical Data Sheet PE39478

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Velocity of Propagation 69.5 %
Capacitance 29 [95.14] pF/ft [pF/m]

.
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 6 GHz
Insertion Loss (Typ.) 0.256 0.313 0.425 0.547 0.802 dB/ft
0.84 1.03 1.39 1.79 2.63 dB/m

.

Mechanical Specifications
Cable Assembly
Diameter 0.69 in [17.53 mm]
.
Weight 0.044 lbs [19.96 g]
Cable
Cable Type PE-SR405FL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Tinned Copper Braid
.

Connectors
Description Connector 1 Connector 2
Type TNC Female Bulkhead MMCX Plug Right Angle
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Phosphor Bronze, Gold
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Nickel Brass, Gold
.
Mechanical Specification Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead to MMCX Plug Right Angle Semi-Flexible Precision Cable Using PE-
SR405FL Coax, LF Solder PE39478 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE39478 REV 1.2 2
