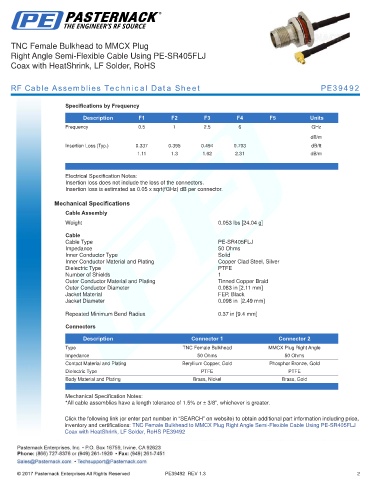

TNC Female Bulkhead to MMCX Plug
Right Angle Semi-Flexible Cable Using PE-SR405FLJ
Coax with HeatShrink, LF Solder, RoHS

RF Cable Assemblies Technical Data Sheet PE39492

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2.5 6 GHz
dB/m
Insertion Loss (Typ.) 0.337 0.395 0.494 0.703 dB/ft
1.11 1.3 1.62 2.31 dB/m

.
Electrical Specification Notes:
Insertion loss does not include the loss of the connectors.
Insertion loss is estimated as 0.05 x sqrt(fGHz) dB per connector.

Mechanical Specifications
Cable Assembly
.
Weight 0.053 lbs [24.04 g]

Cable
Cable Type PE-SR405FLJ
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Outer Conductor Material and Plating Tinned Copper Braid
Outer Conductor Diameter 0.083 in [2.11 mm]
Jacket Material FEP, Black
Jacket Diameter 0.098 in [2.49 mm]
.
Repeated Minimum Bend Radius 0.37 in [9.4 mm]
Connectors

Description Connector 1 Connector 2
Type TNC Female Bulkhead MMCX Plug Right Angle
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Phosphor Bronze, Gold
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Nickel Brass, Gold
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead to MMCX Plug Right Angle Semi-Flexible Cable Using PE-SR405FLJ
Coax with HeatShrink, LF Solder, RoHS PE39492

PE39492 REV 1.3 2
