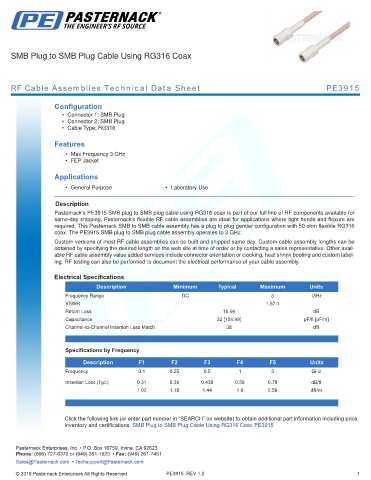

SMB Plug to SMB Plug Cable Using RG316 Coax
RF Cable Assemblies Technical Data Sheet PE3915
Configuration
• Connector 1: SMB Plug
• Connector 2: SMB Plug
• Cable Type: RG316
Features
• Max Frequency 3 GHz
• FEP Jacket
Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3915 SMB plug to SMB plug cable using RG316 coax is part of our full line of RF components available for
same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure are
required. This Pasternack SMB to SMB cable assembly has a plug to plug gender configuration with 50 ohm flexible RG316
coax. The PE3915 SMB plug to SMB plug cable assembly operates to 3 GHz.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.57:1
Return Loss 15.56 dB
Capacitance 32 [104.99] pF/ft [pF/m]
Channel-to-Channel Insertion Loss Match 38 dB
.
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 3 GHz
Insertion Loss (Typ.) 0.31 0.36 0.438 0.58 0.78 dB/ft
1.02 1.18 1.44 1.9 2.56 dB/m
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Plug to SMB Plug Cable Using RG316 Coax PE3915
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3915 REV 1.2 1
