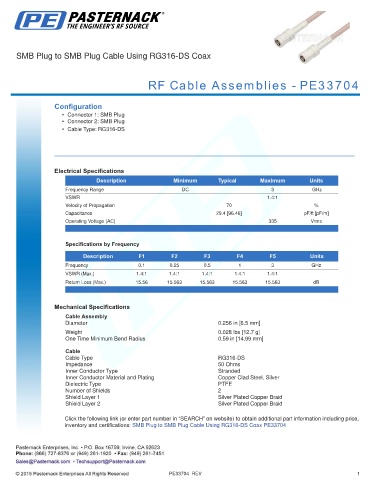

SMB Plug to SMB Plug Cable Using RG316-DS Coax

RF Cable Assemblies - PE33704

Configuration
• Connector 1: SMB Plug
• Connector 2: SMB Plug
• Cable Type: RG316-DS

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.4:1
Velocity of Propagation 70 %
Capacitance 29.4 [96.46] pF/ft [pF/m]
Operating Voltage (AC) 335 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 3 GHz
VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.256 in [6.5 mm]
.
Weight 0.028 lbs [12.7 g]
One Time Minimum Bend Radius 0.59 in [14.99 mm]

Cable
Cable Type RG316-DS
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Plug to SMB Plug Cable Using RG316-DS Coax PE33704

PE33704 REV 1
