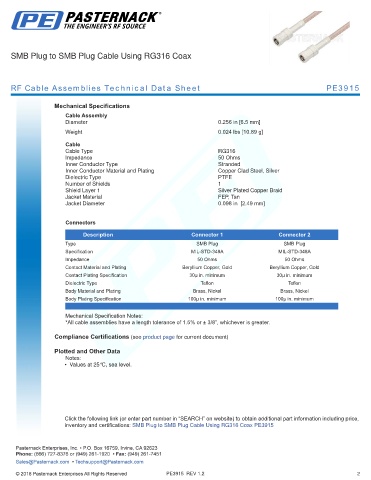

SMB Plug to SMB Plug Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3915

Mechanical Specifications
Cable Assembly
Diameter 0.256 in [6.5 mm]
.
Weight 0.024 lbs [10.89 g]
Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.098 in [2.49 mm]
.

Connectors

Description Connector 1 Connector 2
Type SMB Plug SMB Plug
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification 30µ in. minimum 30µ in. minimum
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Plug to SMB Plug Cable Using RG316 Coax PE3915
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
