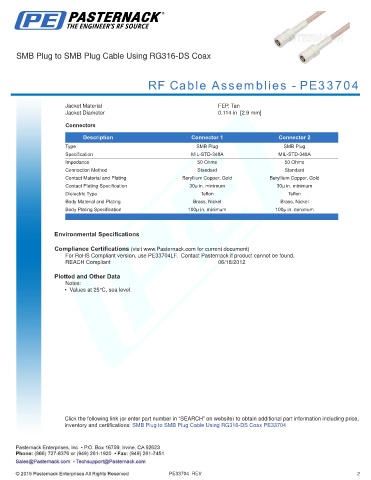

SMB Plug to SMB Plug Cable Using RG316-DS Coax

RF Cable Assemblies - PE33704

Jacket Material FEP, Tan
Jacket Diameter 0.114 in [2.9 mm]

Connectors

Description Connector 1 Connector 2
Type SMB Plug SMB Plug
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Connection Method Standard Standard
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification 30µ in. minimum 30µ in. minimum
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum 100µ in. minimum
.

Environmental Specifications

Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE33704LF. Contact Pasternack if product cannot be found.
REACH Compliant 06/18/2012

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Plug to SMB Plug Cable Using RG316-DS Coax PE33704

PE33704 REV 2
