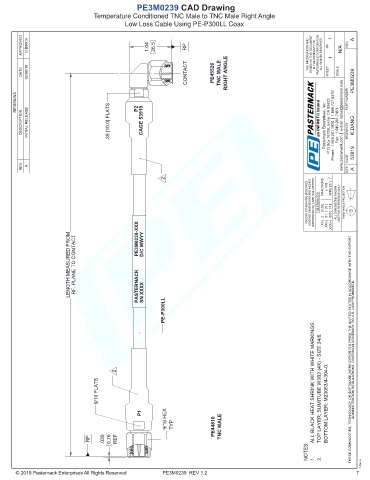

PE3M0239 CAD Drawing
Temperature Conditioned TNC Male to TNC Male Right Angle
Low Loss Cable Using PE-P300LL Coax

APPROVED D.BIRCH 1.04 26.5 RP THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 02/08/19 CONTACT PE45526 TNC MALE RIGHT ANGLE SHEET OF SCALE PE3M0239

REVISIONS P2 PART NUMBER

DESCRIPTION INITIAL RELEASE .39 [10.0] FLATS CAGE 53919 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

REV. A CAGE SIZE 53919 A

2 FRACTIONS ± 1/32 ANGLES ± 1°
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM RF. PLANE TO CONTACT PASTERNACK PE3M0239-XXX SN XXXX D/C WWYY

PE-P300LL

2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
9/16 FLATS ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6.

9/16 HEX TYP PE44810 TNC MALE
P1 BOTTOM LAYER: M23053/4-304-0.

Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
RP .030 0.76 REF
NOTES:
2.
1.
T-Rev.A
PE3M0239 REV 1.2 7
