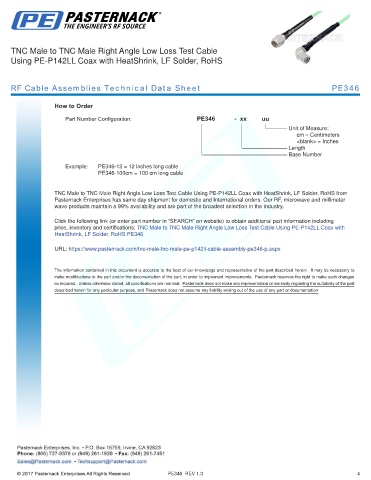

TNC Male to TNC Male Right Angle Low Loss Test Cable
Using PE-P142LL Coax with HeatShrink, LF Solder, RoHS

RF Cable Assemblies Technical Data Sheet PE346

How to Order

Part Number Configuration: PE346 - xx uu
| | | | | Unit of Measure:
| | cm = Centimeters
<blank> = Inches
| | Length
Base Number

Example: PE346-12 = 12 inches long cable
PE346-100cm = 100 cm long cable

TNC Male to TNC Male Right Angle Low Loss Test Cable Using PE-P142LL Coax with HeatShrink, LF Solder, RoHS from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: TNC Male to TNC Male Right Angle Low Loss Test Cable Using PE-P142LL Coax with
HeatShrink, LF Solder, RoHS PE346
URL: https://www.pasternack.com/tnc-male-tnc-male-pe-p142ll-cable-assembly-pe346-p.aspx

PE346 REV 1.3 4
