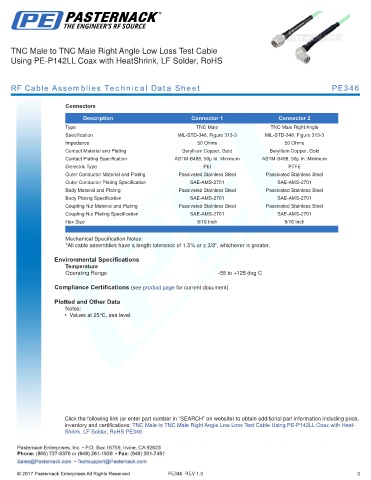

TNC Male to TNC Male Right Angle Low Loss Test Cable
Using PE-P142LL Coax with HeatShrink, LF Solder, RoHS

RF Cable Assemblies Technical Data Sheet PE346

Connectors

Description Connector 1 Connector 2
Type TNC Male TNC Male Right Angle
Specification MIL-STD-348, Figure 313-3 MIL-STD-348, Figure 313-3
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification ASTM-B488, 50µ In. Minimum ASTM-B488, 50µ In. Minimum
Dielectric Type PEI PTFE
Outer Conductor Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Outer Conductor Plating Specification SAE-AMS-2701 SAE-AMS-2701
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Body Plating Specification SAE-AMS-2701 SAE-AMS-2701
Coupling Nut Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Plating Specification SAE-AMS-2701 SAE-AMS-2701
Hex Size 9/16 Inch 9/16 Inch
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Right Angle Low Loss Test Cable Using PE-P142LL Coax with Heat-
Shrink, LF Solder, RoHS PE346

PE346 REV 1.3 3
