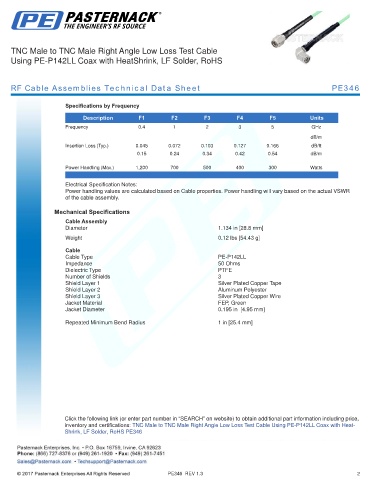

TNC Male to TNC Male Right Angle Low Loss Test Cable
Using PE-P142LL Coax with HeatShrink, LF Solder, RoHS
RF Cable Assemblies Technical Data Sheet PE346
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.4 1 2 3 5 GHz
dB/m
Insertion Loss (Typ.) 0.045 0.072 0.103 0.127 0.166 dB/ft
0.15 0.24 0.34 0.42 0.54 dB/m
Power Handling (Max.) 1,200 700 500 400 300 Watts
.
Electrical Specification Notes:
Power handling values are calculated based on Cable properties. Power handling will vary based on the actual VSWR
of the cable assembly.
Mechanical Specifications
Cable Assembly
Diameter 1.134 in [28.8 mm]
.
Weight 0.12 lbs [54.43 g]
Cable
Cable Type PE-P142LL
Impedance 50 Ohms
Dielectric Type PTFE
Number of Shields 3
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Aluminum Polyester
Shield Layer 3 Silver Plated Copper Wire
Jacket Material FEP, Green
Jacket Diameter 0.195 in [4.95 mm]
.
Repeated Minimum Bend Radius 1 in [25.4 mm]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Right Angle Low Loss Test Cable Using PE-P142LL Coax with Heat-
Shrink, LF Solder, RoHS PE346
PE346 REV 1.3 2
