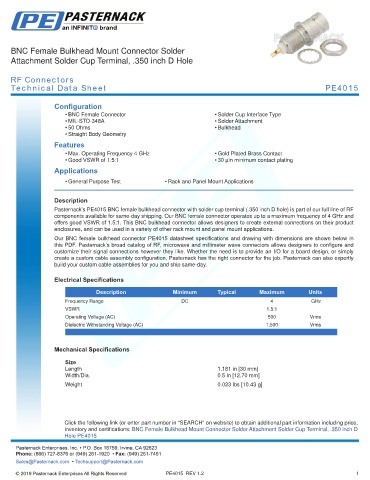

BNC Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .350 inch D Hole

RF Connectors
Technical Data Sheet PE4015

Configuration
• BNC Female Connector • Solder Cup Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4015 BNC female bulkhead connector with solder cup terminal (.350 inch D hole) is part of our full line of RF
components available for same-day shipping. Our BNC female connector operates up to a maximum frequency of 4 GHz and
offers good VSWR of 1.5:1. This BNC bulkhead connector allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our BNC female bulkhead connector PE4015 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications

Size
Length 1.181 in [30 mm]
Width/Dia. 0.5 in [12.70 mm]
.
Weight 0.023 lbs [10.43 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .350 inch D
-
Hole PE4015 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4015 REV 1.2 1
