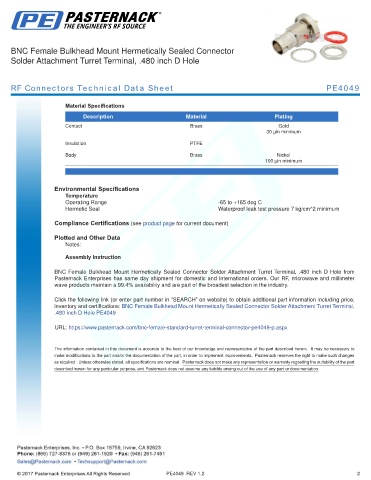

BNC Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Turret Terminal, .480 inch D Hole

RF Connectors Technical Data Sheet PE4049

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Hermetic Seal Waterproof leak test pressure 7 kg/cm^2 minimum

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
Assembly Instruction

BNC Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Turret Terminal, .480 inch D Hole from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Turret Terminal,
.480 inch D Hole PE4049

URL: https://www.pasternack.com/bnc-female-standard-turret-terminal-connector-pe4049-p.aspx

PE4049 REV 1.2 2
