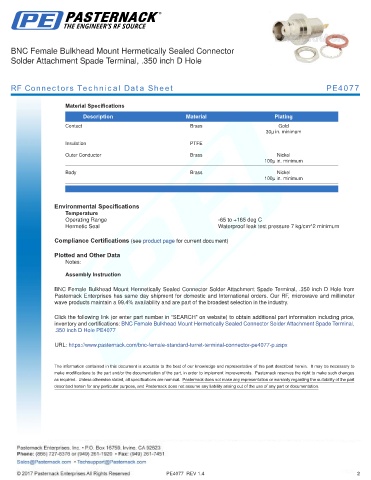

BNC Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Spade Terminal, .350 inch D Hole

RF Connectors Technical Data Sheet PE4077

Material Specifications
Description Material Plating
Contact Brass Gold
30µ in. minimum

Insulation PTFE
Outer Conductor Brass Nickel
100µ in. minimum

Body Brass Nickel
100µ in. minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Hermetic Seal Waterproof leak test pressure 7 kg/cm^2 minimum

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Assembly Instruction

BNC Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Spade Terminal, .350 inch D Hole from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Spade Terminal,
.350 inch D Hole PE4077

URL: https://www.pasternack.com/bnc-female-standard-turret-terminal-connector-pe4077-p.aspx

PE4077 REV 1.4 2
