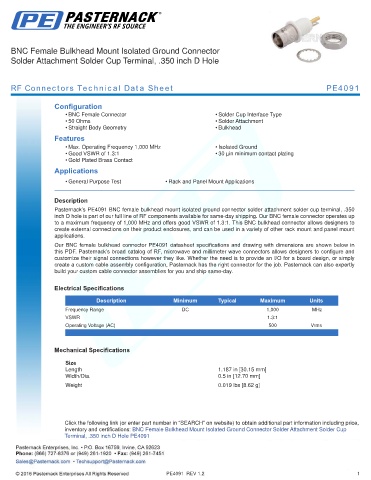

BNC Female Bulkhead Mount Isolated Ground Connector
Solder Attachment Solder Cup Terminal, .350 inch D Hole

RF Connectors Technical Data Sheet PE4091

Configuration
• BNC Female Connector • Solder Cup Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 1,000 MHz • Isolated Ground
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4091 BNC female bulkhead mount isolated ground connector solder attachment solder cup terminal, .350
inch D hole is part of our full line of RF components available for same-day shipping. Our BNC female connector operates up
to a maximum frequency of 1,000 MHz and offers good VSWR of 1.3:1. This BNC bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our BNC female bulkhead connector PE4091 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.187 in [30.15 mm]
Width/Dia. 0.5 in [12.70 mm]
.
Weight 0.019 lbs [8.62 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Isolated Ground Connector Solder Attachment Solder Cup
Terminal, .350 inch D Hole PE4091

PE4091 REV 1.2 1
