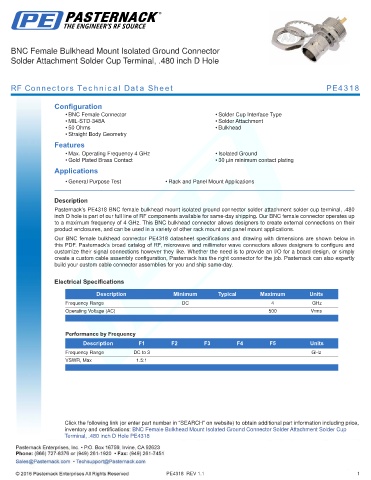

BNC Female Bulkhead Mount Isolated Ground Connector
Solder Attachment Solder Cup Terminal, .480 inch D Hole
RF Connectors Technical Data Sheet PE4318
Configuration
• BNC Female Connector • Solder Cup Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 4 GHz • Isolated Ground
• Gold Plated Brass Contact • 30 µin minimum contact plating
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4318 BNC female bulkhead mount isolated ground connector solder attachment solder cup terminal, .480
inch D hole is part of our full line of RF components available for same-day shipping. Our BNC female connector operates up
to a maximum frequency of 4 GHz. This BNC bulkhead connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our BNC female bulkhead connector PE4318 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 500 Vrms
.
Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 GHz
VSWR, Max 1.5:1
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Isolated Ground Connector Solder Attachment Solder Cup
Terminal, .480 inch D Hole PE4318
PE4318 REV 1.1 1
