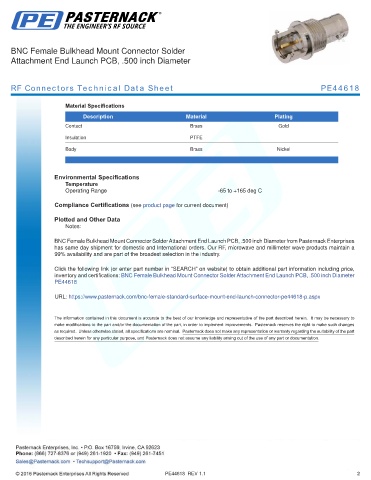

BNC Female Bulkhead Mount Connector Solder
Attachment End Launch PCB, .500 inch Diameter

RF Connectors Technical Data Sheet PE44618

Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Body Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

BNC Female Bulkhead Mount Connector Solder Attachment End Launch PCB, .500 inch Diameter from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Connector Solder Attachment End Launch PCB, .500 inch Diameter
PE44618

URL: https://www.pasternack.com/bnc-female-standard-surface-mount-end-launch-connector-pe44618-p.aspx

PE44618 REV 1.1 2
