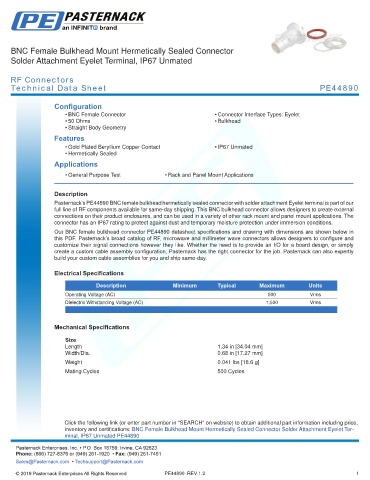

Page 1272 - 1.0/2.3 to SHV RF Connector Datasheets

BNC Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Eyelet Terminal, IP67 Unmated

RF Connectors
Technical Data Sheet PE44890

Configuration
• BNC Female Connector • Connector Interface Types: Eyelet
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Gold Plated Beryllium Copper Contact • IP67 Unmated
• Hermetically Sealed
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE44890 BNC female bulkhead hermetically sealed connector with solder attachment Eyelet terminal is part of our
full line of RF components available for same-day shipping. This BNC bulkhead connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications. The
connector has an IP67 rating to protect against dust and temporary moisture protection under immersion conditions.
Our BNC female bulkhead connector PE44890 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications
Size
Length 1.34 in [34.04 mm]
Width/Dia. 0.68 in [17.27 mm]
.
Weight 0.041 lbs [18.6 g]
.
Mating Cycles 500 Cycles

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Eyelet Ter- -
minal, IP67 Unmated PE44890 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44890 REV 1.2 1
