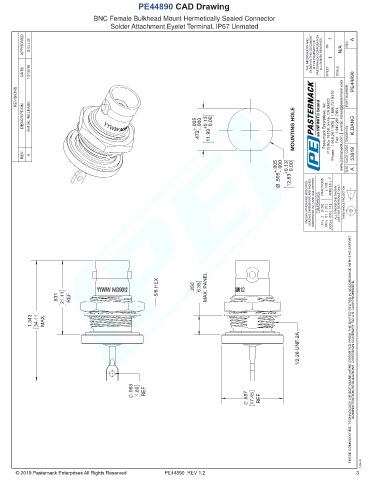

PE44890 CAD Drawing
BNC Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Eyelet Terminal, IP67 Unmated

APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 10/15/19 SHEET OF SCALE PE44890

REVISIONS PART NUMBER

DESCRIPTION INITIAL RELEASE .472 +.005 -.000 11.99 +0.13 0.00 MOUNTING HOLE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

REV. A CAGE CODE 53919
.505 +.005 -.000 12.83 +0.13 0.00 SIZE A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
Ø FRACTIONS ± 1/32 ANGLES ± 1°

5/8 HEX .250 6.35 MAX. PANEL

.831 21.11 REF

1.343 34.11 MAX.

1/2-28 UNF-2A THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.063 1.60 REF .687 17.45 REF

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
PE44890 REV 1.2 3
