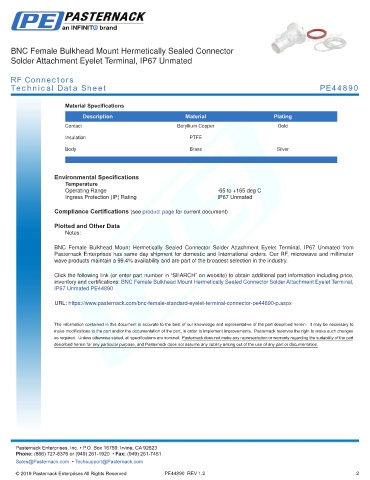

BNC Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Eyelet Terminal, IP67 Unmated

RF Connectors
Technical Data Sheet PE44890

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold

Insulation PTFE
Body Brass Silver
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Ingress Protection (IP) Rating IP67 Unmated

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

BNC Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Eyelet Terminal, IP67 Unmated from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Eyelet Terminal,
IP67 Unmated PE44890

URL: https://www.pasternack.com/bnc-female-standard-eyelet-terminal-connector-pe44890-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44890 REV 1.2 2
