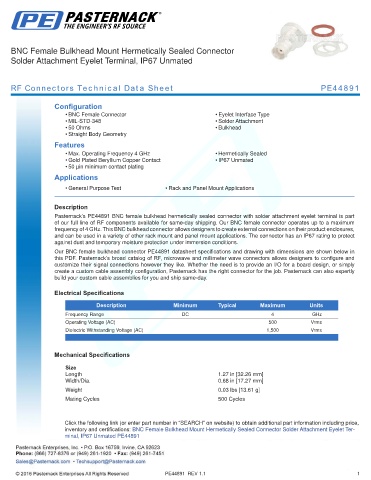

BNC Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Eyelet Terminal, IP67 Unmated

RF Connectors Technical Data Sheet PE44891

Configuration
• BNC Female Connector • Eyelet Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 4 GHz • Hermetically Sealed
• Gold Plated Beryllium Copper Contact • IP67 Unmated
• 50 µin minimum contact plating
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE44891 BNC female bulkhead hermetically sealed connector with solder attachment eyelet terminal is part
of our full line of RF components available for same-day shipping. Our BNC female connector operates up to a maximum
frequency of 4 GHz. This BNC bulkhead connector allows designers to create external connections on their product enclosures,
and can be used in a variety of other rack mount and panel mount applications. The connector has an IP67 rating to protect
against dust and temporary moisture protection under immersion conditions.
Our BNC female bulkhead connector PE44891 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications

Size
Length 1.27 in [32.26 mm]
Width/Dia. 0.68 in [17.27 mm]
.
Weight 0.03 lbs [13.61 g]
.
Mating Cycles 500 Cycles

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Eyelet Ter-
minal, IP67 Unmated PE44891

PE44891 REV 1.1 1
