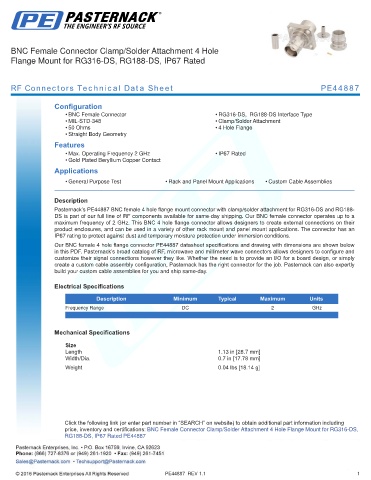

BNC Female Connector Clamp/Solder Attachment 4 Hole
Flange Mount for RG316-DS, RG188-DS, IP67 Rated

RF Connectors Technical Data Sheet PE44887

Configuration
• BNC Female Connector • RG316-DS, RG188-DS Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Max. Operating Frequency 2 GHz • IP67 Rated
• Gold Plated Beryllium Copper Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44887 BNC female 4 hole flange mount connector with clamp/solder attachment for RG316-DS and RG188-
DS is part of our full line of RF components available for same-day shipping. Our BNC female connector operates up to a
maximum frequency of 2 GHz. This BNC 4 hole flange connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications. The connector has an
IP67 rating to protect against dust and temporary moisture protection under immersion conditions.
Our BNC female 4 hole flange connector PE44887 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
.

Mechanical Specifications
Size
Length 1.13 in [28.7 mm]
Width/Dia. 0.7 in [17.78 mm]
.
Weight 0.04 lbs [18.14 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG316-DS,
RG188-DS, IP67 Rated PE44887

PE44887 REV 1.1 1
