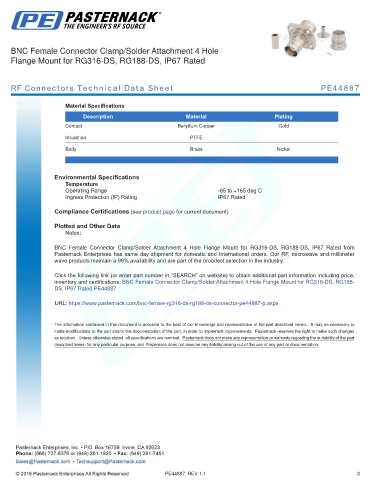

BNC Female Connector Clamp/Solder Attachment 4 Hole
Flange Mount for RG316-DS, RG188-DS, IP67 Rated

RF Connectors Technical Data Sheet PE44887

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold

Insulation PTFE
Body Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Ingress Protection (IP) Rating IP67 Rated

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

BNC Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG316-DS, RG188-DS, IP67 Rated from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG316-DS, RG188-
DS, IP67 Rated PE44887

URL: https://www.pasternack.com/bnc-female-rg316-ds-rg188-ds-connector-pe44887-p.aspx

PE44887 REV 1.1 2
