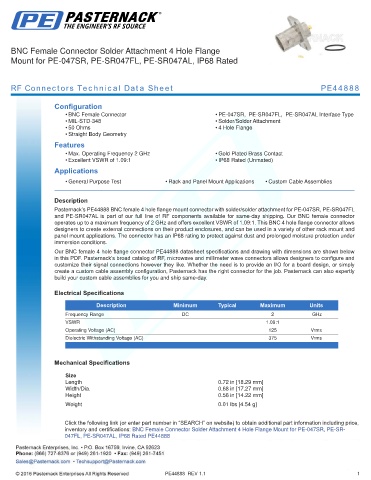

BNC Female Connector Solder Attachment 4 Hole Flange
Mount for PE-047SR, PE-SR047FL, PE-SR047AL, IP68 Rated

RF Connectors Technical Data Sheet PE44888

Configuration
• BNC Female Connector • PE-047SR, PE-SR047FL, PE-SR047AL Interface Type
• MIL-STD-348 • Solder/Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Max. Operating Frequency 2 GHz • Gold Plated Brass Contact
• Excellent VSWR of 1.09:1 • IP68 Rated (Unmated)
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44888 BNC female 4 hole flange mount connector with solder/solder attachment for PE-047SR, PE-SR047FL
and PE-SR047AL is part of our full line of RF components available for same-day shipping. Our BNC female connector
operates up to a maximum frequency of 2 GHz and offers excellent VSWR of 1.09:1. This BNC 4 hole flange connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications. The connector has an IP68 rating to protect against dust and prolonged moisture protection under
immersion conditions.
Our BNC female 4 hole flange connector PE44888 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
VSWR 1.09:1
Operating Voltage (AC) 125 Vrms
Dielectric Withstanding Voltage (AC) 375 Vrms
.

Mechanical Specifications

Size
Length 0.72 in [18.29 mm]
Width/Dia. 0.68 in [17.27 mm]
Height 0.56 in [14.22 mm]
.
Weight 0.01 lbs [4.54 g]
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Connector Solder Attachment 4 Hole Flange Mount for PE-047SR, PE-SR-
047FL, PE-SR047AL, IP68 Rated PE44888
