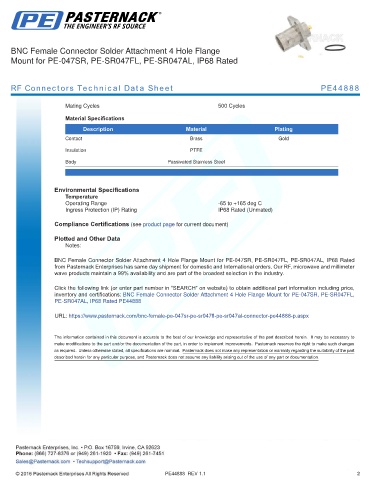

Page 1284 - 1.0/2.3 to SHV RF Connector Datasheets

BNC Female Connector Solder Attachment 4 Hole Flange
Mount for PE-047SR, PE-SR047FL, PE-SR047AL, IP68 Rated

RF Connectors Technical Data Sheet PE44888

Mating Cycles 500 Cycles

Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE

Body Passivated Stainless Steel
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Ingress Protection (IP) Rating IP68 Rated (Unmated)

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

BNC Female Connector Solder Attachment 4 Hole Flange Mount for PE-047SR, PE-SR047FL, PE-SR047AL, IP68 Rated
from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Connector Solder Attachment 4 Hole Flange Mount for PE-047SR, PE-SR047FL,
PE-SR047AL, IP68 Rated PE44888

URL: https://www.pasternack.com/bnc-female-pe-047sr-pe-sr047fl-pe-sr047al-connector-pe44888-p.aspx

PE44888 REV 1.1 2
