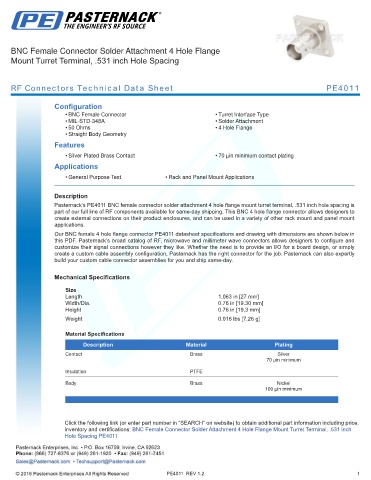

BNC Female Connector Solder Attachment 4 Hole Flange
Mount Turret Terminal, .531 inch Hole Spacing

RF Connectors Technical Data Sheet PE4011

Configuration
• BNC Female Connector • Turret Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Silver Plated Brass Contact • 70 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4011 BNC female connector solder attachment 4 hole flange mount turret terminal, .531 inch hole spacing is
part of our full line of RF components available for same-day shipping. This BNC 4 hole flange connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our BNC female 4 hole flange connector PE4011 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.063 in [27 mm]
Width/Dia. 0.76 in [19.30 mm]
Height 0.76 in [19.3 mm]
.
Weight 0.016 lbs [7.26 g]
.
Material Specifications
Description Material Plating
Contact Brass Silver
70 µin minimum
Insulation PTFE
Body Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Connector Solder Attachment 4 Hole Flange Mount Turret Terminal, .531 inch
Hole Spacing PE4011

PE4011 REV 1.2 1
