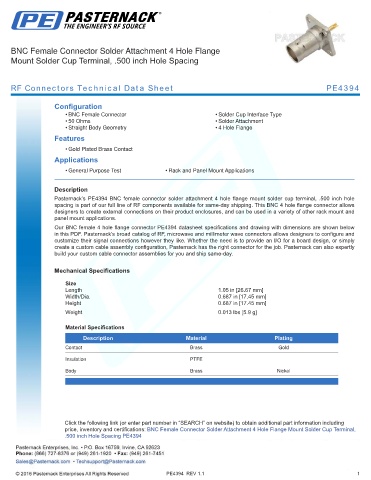

BNC Female Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .500 inch Hole Spacing

RF Connectors Technical Data Sheet PE4394

Configuration
• BNC Female Connector • Solder Cup Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4394 BNC female connector solder attachment 4 hole flange mount solder cup terminal, .500 inch hole
spacing is part of our full line of RF components available for same-day shipping. This BNC 4 hole flange connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
Our BNC female 4 hole flange connector PE4394 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.05 in [26.67 mm]
Width/Dia. 0.687 in [17.45 mm]
Height 0.687 in [17.45 mm]
.
Weight 0.013 lbs [5.9 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal,
.500 inch Hole Spacing PE4394

PE4394 REV 1.1 1
