BNC Female Connector Clamp/Solder Attachment
4 Hole Flange For RG58, RG55, RG141, RG142,

RG223, RG400, .500 inch Threaded Hole Spacing

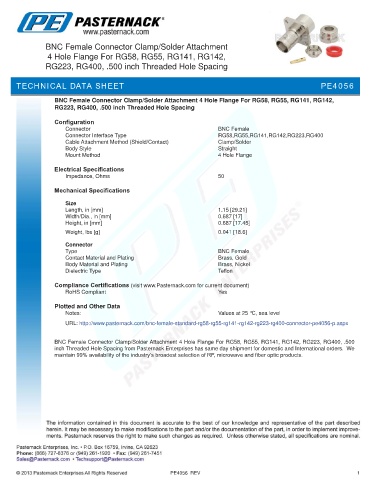

TECHNICAL DATA SHEET PE4056

BNC Female Connector Clamp/Solder Attachment 4 Hole Flange For RG58, RG55, RG141, RG142,
RG223, RG400, .500 inch Threaded Hole Spacing

Configuration
Connector BNC Female
Connector Interface Type RG58,RG55,RG141,RG142,RG223,RG400
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 50
Mechanical Specifications

Size
Length, in [mm] 1.15 [29.21]
Width/Dia., in [mm] 0.687 [17]
Height, in [mm] 0.687 [17.45]
.
Weight, lbs [g] 0.041 [18.6]

Connector
Type BNC Female
Contact Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
URL: http://www.pasternack.com/bnc-female-standard-rg58-rg55-rg141-rg142-rg223-rg400-connector-pe4056-p.aspx

BNC Female Connector Clamp/Solder Attachment 4 Hole Flange For RG58, RG55, RG141, RG142, RG223, RG400, .500
inch Threaded Hole Spacing from Pasternack Enterprises has same day shipment for domestic and International orders. We
maintain 99% availability of the industry’s broadest selection of RF, microwave and fiber optic products.

PE4056 REV 1
