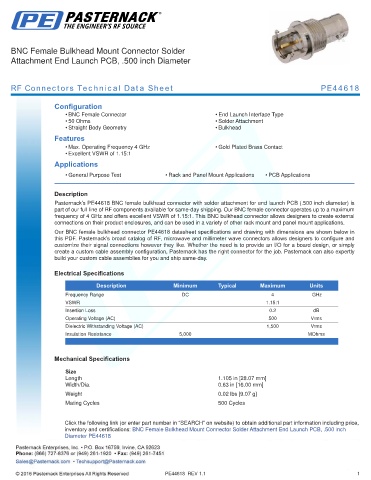

BNC Female Bulkhead Mount Connector Solder
Attachment End Launch PCB, .500 inch Diameter

RF Connectors Technical Data Sheet PE44618

Configuration
• BNC Female Connector • End Launch Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Excellent VSWR of 1.15:1
Applications
• General Purpose Test • Rack and Panel Mount Applications • PCB Applications
.
Description
Pasternack’s PE44618 BNC female bulkhead connector with solder attachment for end launch PCB (.500 inch diameter) is
part of our full line of RF components available for same-day shipping. Our BNC female connector operates up to a maximum
frequency of 4 GHz and offers excellent VSWR of 1.15:1. This BNC bulkhead connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our BNC female bulkhead connector PE44618 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.15:1
Insertion Loss 0.2 dB
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.105 in [28.07 mm]
Width/Dia. 0.63 in [16.00 mm]
.
Weight 0.02 lbs [9.07 g]
.
Mating Cycles 500 Cycles

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Connector Solder Attachment End Launch PCB, .500 inch
Diameter PE44618

PE44618 REV 1.1 1
