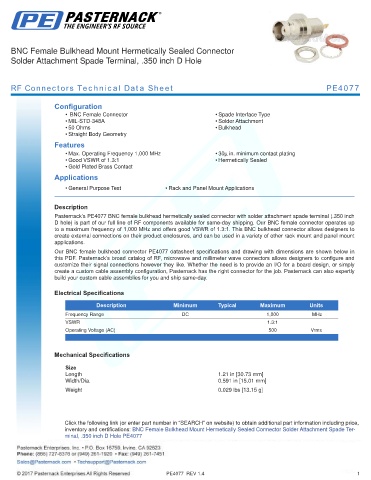

BNC Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Spade Terminal, .350 inch D Hole

RF Connectors Technical Data Sheet PE4077

Configuration
• BNC Female Connector • Spade Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 1,000 MHz • 30µ in. minimum contact plating
• Good VSWR of 1.3:1 • Hermetically Sealed
• Gold Plated Brass Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4077 BNC female bulkhead hermetically sealed connector with solder attachment spade terminal (.350 inch
D hole) is part of our full line of RF components available for same-day shipping. Our BNC female connector operates up
to a maximum frequency of 1,000 MHz and offers good VSWR of 1.3:1. This BNC bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our BNC female bulkhead connector PE4077 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.21 in [30.73 mm]
Width/Dia. 0.591 in [15.01 mm]
.
Weight 0.029 lbs [13.15 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Spade Ter-
minal, .350 inch D Hole PE4077
