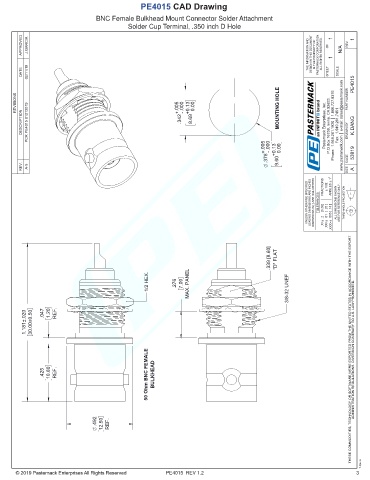

PE4015 CAD Drawing
BNC Female Bulkhead Mount Connector Solder Attachment
Solder Cup Terminal, .350 inch D Hole

APPROVED J.GARCIA THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV 1

DATE 02/11/19 SHEET OF SCALE PE4015

REVISIONS -.000 0.00 MOUNTING HOLE PART NUMBER

DESCRIPTION PCR PE4015 01212019 .342 +.005 8.69 +0.13 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

.378 +.005 -.000 9.60 +0.13 0.00 CAGE 53919

REV. A-5 SIZE A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.339 [8.60] "D" FLAT

1/2 HEX. .276 7.00 MAX. PANEL 3/8-32 UNEF

.047 1.20 REF.
1.181±.020 30.00±0.50

THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
50 Ohm BNC FEMALE BULKHEAD

.425 10.80 REF.

.492 12.50 REF.

Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.A
PE4015 REV 1.2 3
