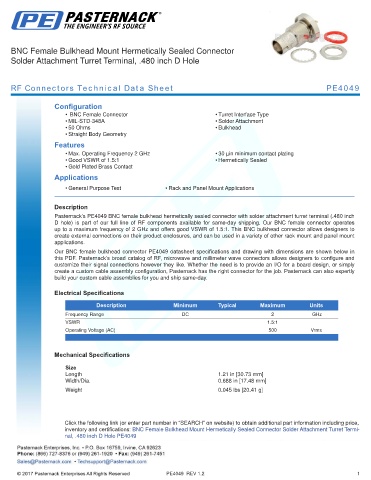

BNC Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Turret Terminal, .480 inch D Hole

RF Connectors Technical Data Sheet PE4049

Configuration
• BNC Female Connector • Turret Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 2 GHz • 30 µin minimum contact plating
• Good VSWR of 1.5:1 • Hermetically Sealed
• Gold Plated Brass Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4049 BNC female bulkhead hermetically sealed connector with solder attachment turret terminal (.480 inch
D hole) is part of our full line of RF components available for same-day shipping. Our BNC female connector operates
up to a maximum frequency of 2 GHz and offers good VSWR of 1.5:1. This BNC bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our BNC female bulkhead connector PE4049 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.21 in [30.73 mm]
Width/Dia. 0.688 in [17.48 mm]
.
Weight 0.045 lbs [20.41 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Turret Termi-
nal, .480 inch D Hole PE4049
