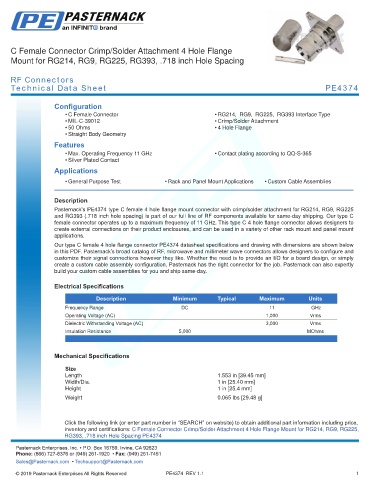

C Female Connector Crimp/Solder Attachment 4 Hole Flange
Mount for RG214, RG9, RG225, RG393, .718 inch Hole Spacing

RF Connectors
Technical Data Sheet PE4374

Configuration
• C Female Connector • RG214, RG9, RG225, RG393 Interface Type
• MIL-C-39012 • Crimp/Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Contact plating according to QQ-S-365
• Silver Plated Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4374 type C female 4 hole flange mount connector with crimp/solder attachment for RG214, RG9, RG225
and RG393 (.718 inch hole spacing) is part of our full line of RF components available for same-day shipping. Our type C
female connector operates up to a maximum frequency of 11 GHz. This type C 4 hole flange connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our type C female 4 hole flange connector PE4374 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 3,000 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.553 in [39.45 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.065 lbs [29.48 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Female Connector Crimp/Solder Attachment 4 Hole Flange Mount for RG214, RG9, RG225,
-
RG393, .718 inch Hole Spacing PE4374 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4374 REV 1.1 1
