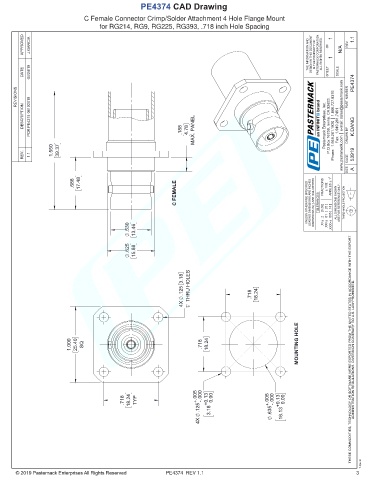

PE4374 CAD Drawing
C Female Connector Crimp/Solder Attachment 4 Hole Flange Mount
for RG214, RG9, RG225, RG393, .718 inch Hole Spacing

APPROVED J.GARCIA THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV 1.1

DATE 04/24/19 SHEET OF SCALE PE4374

REVISIONS PART NUMBER

DESCRIPTION PCR PE4374 04102019 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

.188 4.78 MAX. PANEL DRAWN BY
REV. 1.1 1.550 39.37 CAGE 53919

SIZE A
.688 17.48 FRACTIONS ± 1/32 ANGLES ± 1°

C FEMALE UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.530 13.46 .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=±

.625 15.88

3.18

.125 THRU HOLES .718 18.24

4X

MOUNTING HOLE

1.000 25.40 SQ .718 18.24 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.718 18.24 TYP .125 +.005 -.000 3.18 +0.13 0.00 .635 +.005 -.000 16.13 +0.13 0.00

4X
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
PE4374 REV 1.1 3
