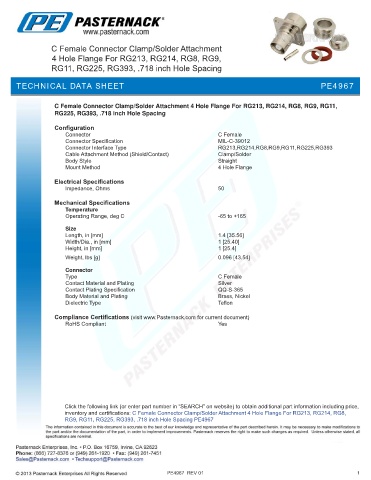

TECHNICAL DATA SHEET PE4967

C Female Connector Clamp/Solder Attachment 4 Hole Flange For RG213, RG214, RG8, RG9, RG11,
RG225, RG393, .718 inch Hole Spacing

Configuration
Connector C Female
Connector Specification MIL-C-39012
Connector Interface Type RG213,RG214,RG8,RG9,RG11,RG225,RG393
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165
Size
Length, in [mm] 1.4 [35.56]
Width/Dia., in [mm] 1 [25.40]
Height, in [mm] 1 [25.4]
.
Weight, lbs [g] 0.096 [43.54]
Connector
Type C Female
Contact Material and Plating Silver
Contact Plating Specification QQ-S-365
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Female Connector Clamp/Solder Attachment 4 Hole Flange For RG213, RG214, RG8,
RG9, RG11, RG225, RG393, .718 inch Hole Spacing PE4967
