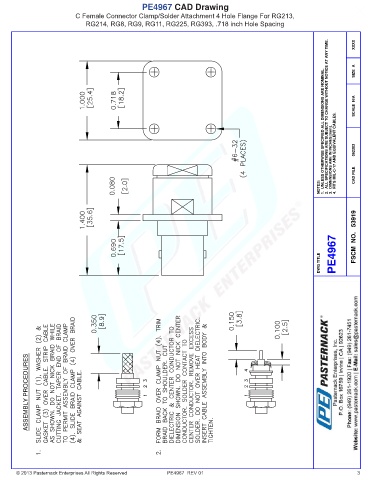

PE4967 CAD Drawing
C Female Connector Clamp/Solder Attachment 4 Hole Flange For RG213,
RG214, RG8, RG9, RG11, RG225, RG393, .718 inch Hole Spacing

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062303

NOTES: CAD FILE

DWG TITLE PE4967 FSCM NO. 53919

ASSEMBLY PROCEDURES

© 2013 Pasternack Enterprises All Rights Reserved PE4967 REV 01 3
