C Female Connector Clamp/Solder Attachment
4 Hole Flange Mount for RG58, RG55, RG141,
RG142, RG223, RG400, .718 inch Hole Spacing

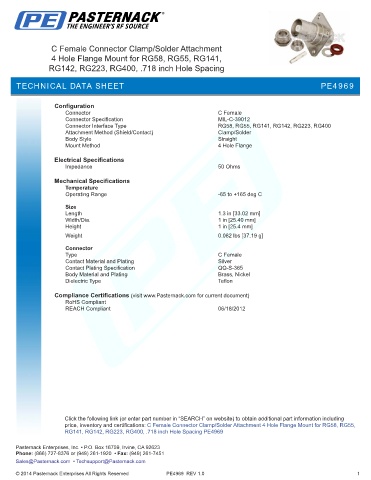

TECHNICAL DATA SHEET PE4969

Configuration
Connector C Female
Connector Specification MIL-C-39012
Connector Interface Type RG58, RG55, RG141, RG142, RG223, RG400
Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance 50 Ohms
Mechanical Specifications
Temperature
Operating Range -65 to +165 deg C

Size
Length 1.3 in [33.02 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.082 lbs [37.19 g]
Connector
Type C Female
Contact Material and Plating Silver
Contact Plating Specification QQ-S-365
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: C Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG58, RG55,
RG141, RG142, RG223, RG400, .718 inch Hole Spacing PE4969

PE4969 REV 1.0 1
