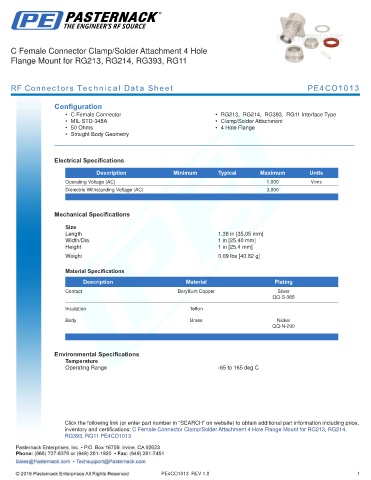

C Female Connector Clamp/Solder Attachment 4 Hole
Flange Mount for RG213, RG214, RG393, RG11

RF Connectors Technical Data Sheet PE4CO1013

Configuration
• C Female Connector • RG213, RG214, RG393, RG11 Interface Type
• MIL-STD-348A • Clamp/Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
.

Electrical Specifications

Description Minimum Typical Maximum Units
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 3,000
.

Mechanical Specifications

Size
Length 1.38 in [35.05 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.09 lbs [40.82 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Silver
QQ-S-365
Insulation Teflon
Body Brass Nickel
QQ-N-290
.

Environmental Specifications
Temperature
Operating Range -65 to 165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG213, RG214,
RG393, RG11 PE4CO1013

PE4CO1013 REV 1.0 1
